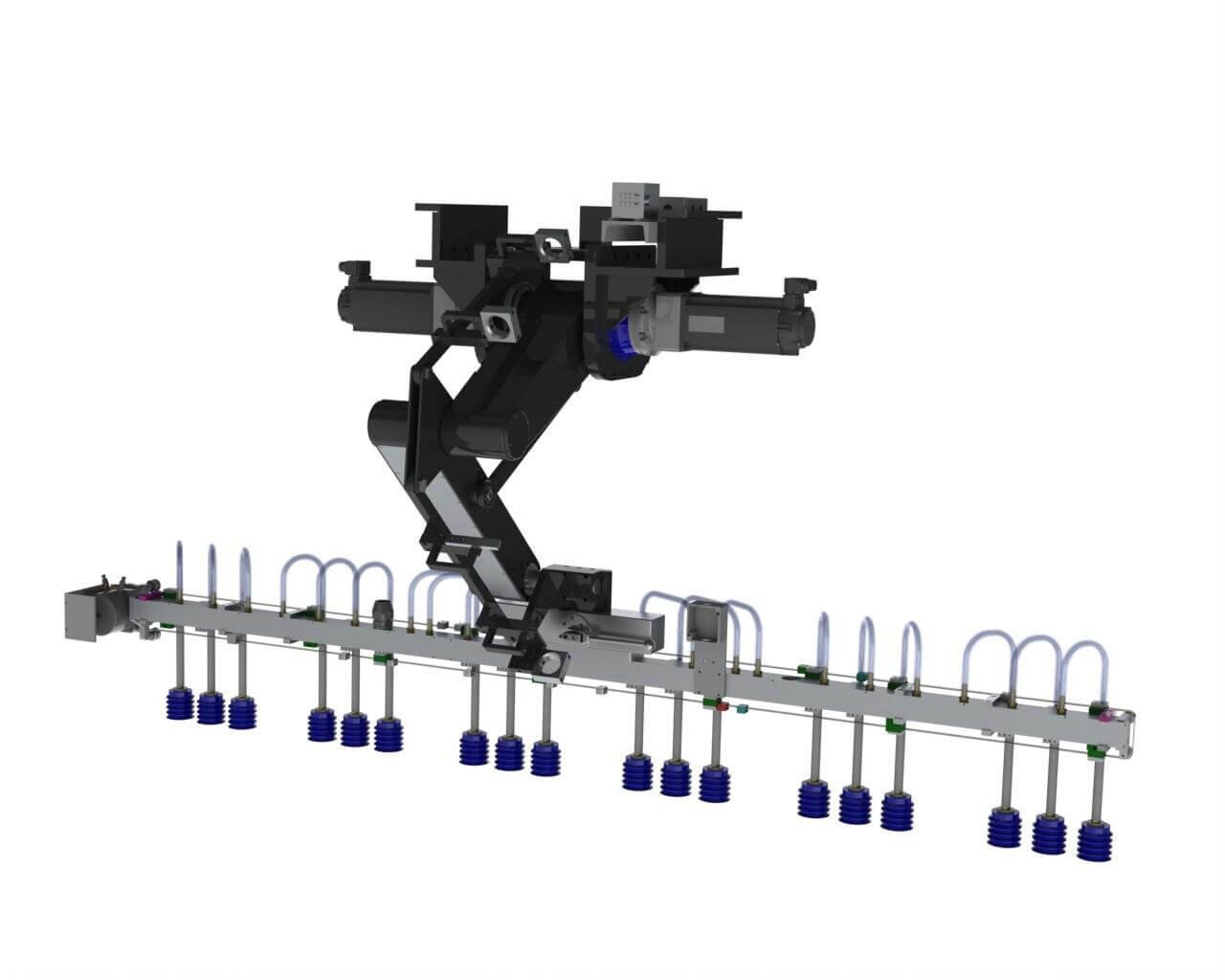

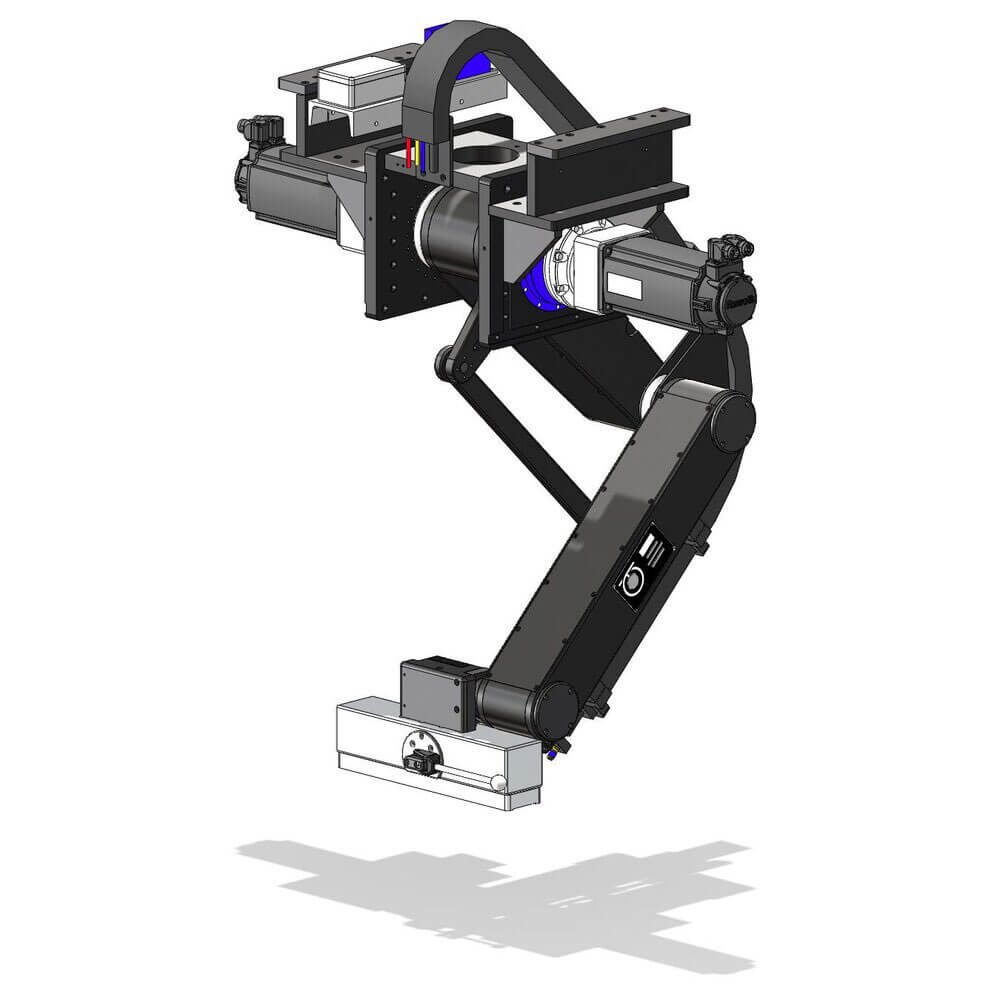

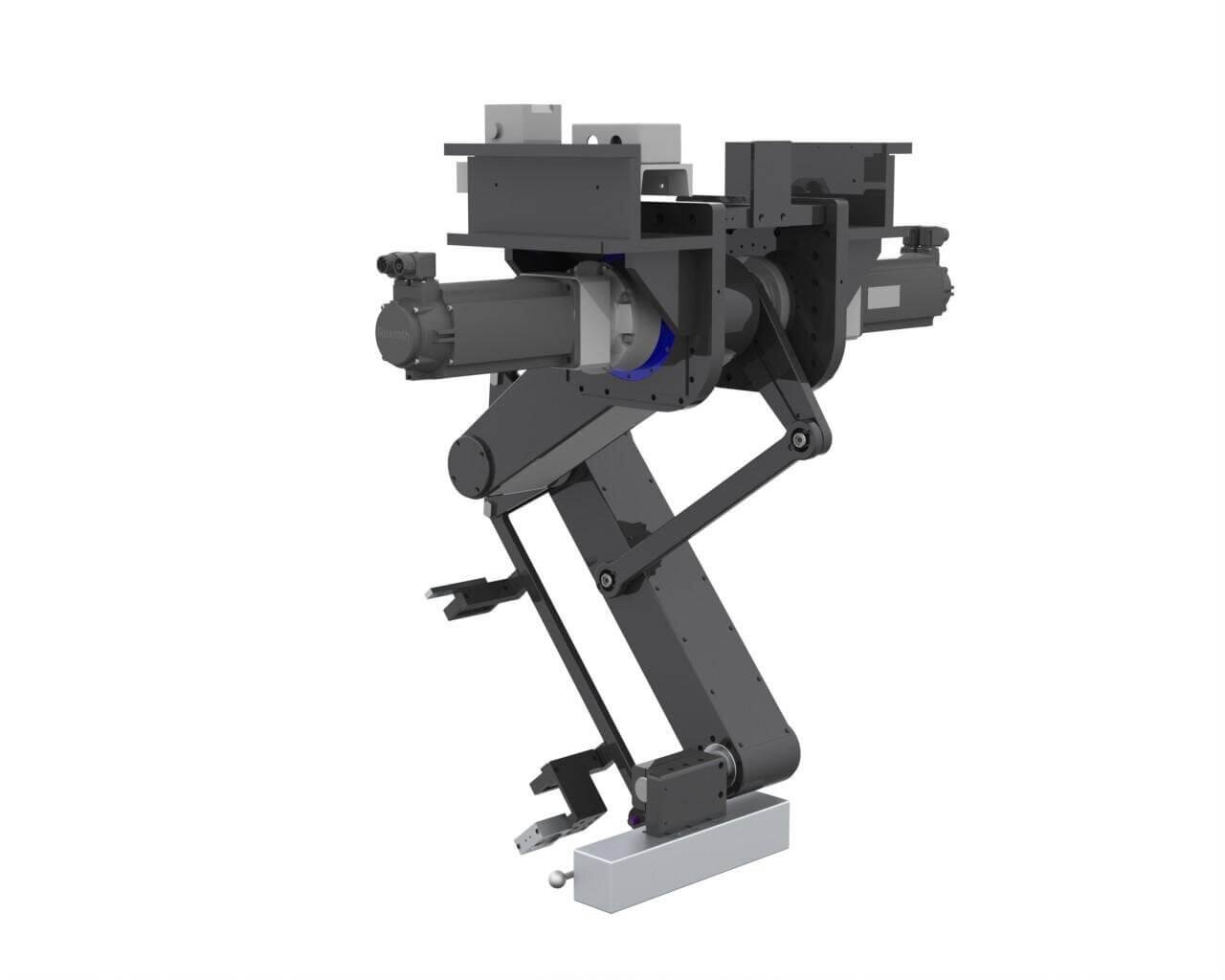

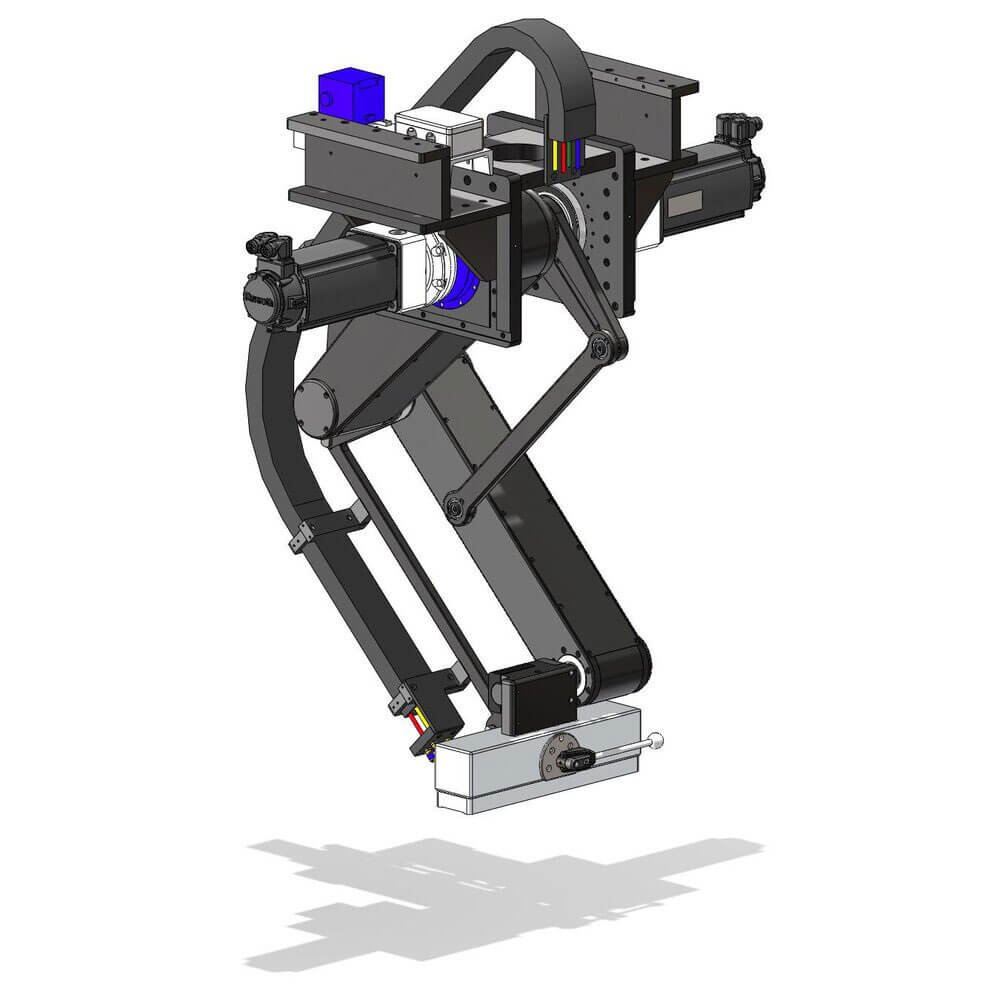

SR-56 2-Axis
The SR-56 is a direct descendant of the traditional R-50 Robot, which was first introduced by IASE in 1986.
The SR-56 combines the dependability of the R-50 with an innovative suspended mount, producing a smaller, cleaner footprint that gives you a competitive edge. Like the R-50 before it, the SR-56 is extremely versatile, performing tasks such as carton forming, product loading, product manipulation, and carton closing.
The mechanical arms and frame of the SR-56 are machined from aircraft-grade aluminum and anodized to customer preference. Two degrees of freedom is achieved by using closed-loop, brushless servomotors and precision planetary reducers, straight or right-angled depending on the application. All bearings in the SR-56 are sealed, lifetime lubricated and fully tested for accuracy.
Technical Specs
Accuracy and repeatability to within .03125” (.8 mm)
56” horizontal by 20” vertical movement envelope
2.1 G acceleration
Top speed of 118 in/sec.
Maximum load capacity of 300 lbs.
