WIPTM

IASE’s Wireless Intelligent Positioning Transport Module is composed of a series of modular, linear sections and two cantilevered freely-rotating end sections to assist with carriage management. Multiple section lengths are available to provide for a fully flexible overall length.

The carriages of the WIPTM are fully autonomous and communicate via wireless signal. Each independently controlled carriage is guided by precision linear bearings, enabling swift, quiet, and smooth movement.

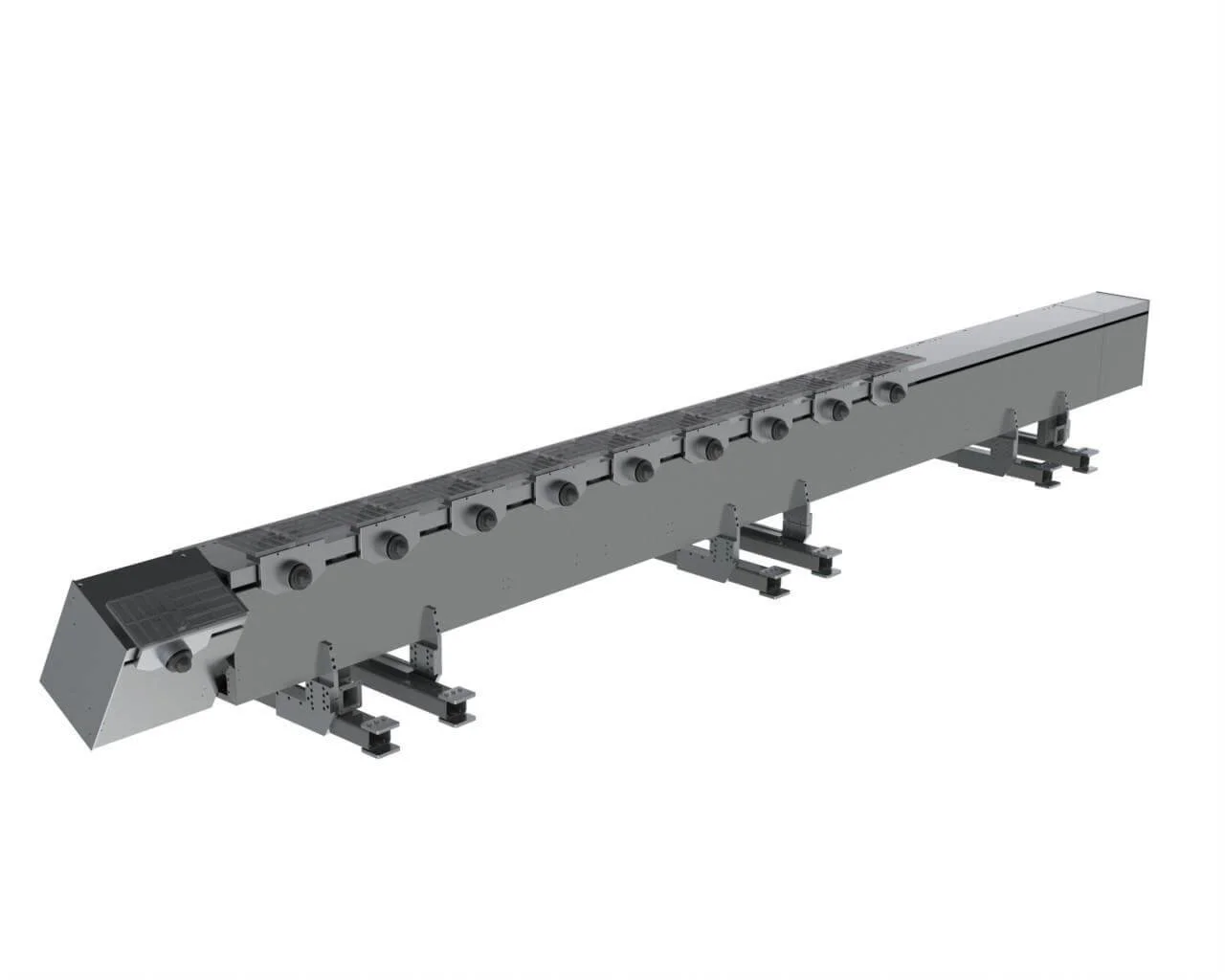

The industrial automated systems engineering wireless intelligent positioning transport module

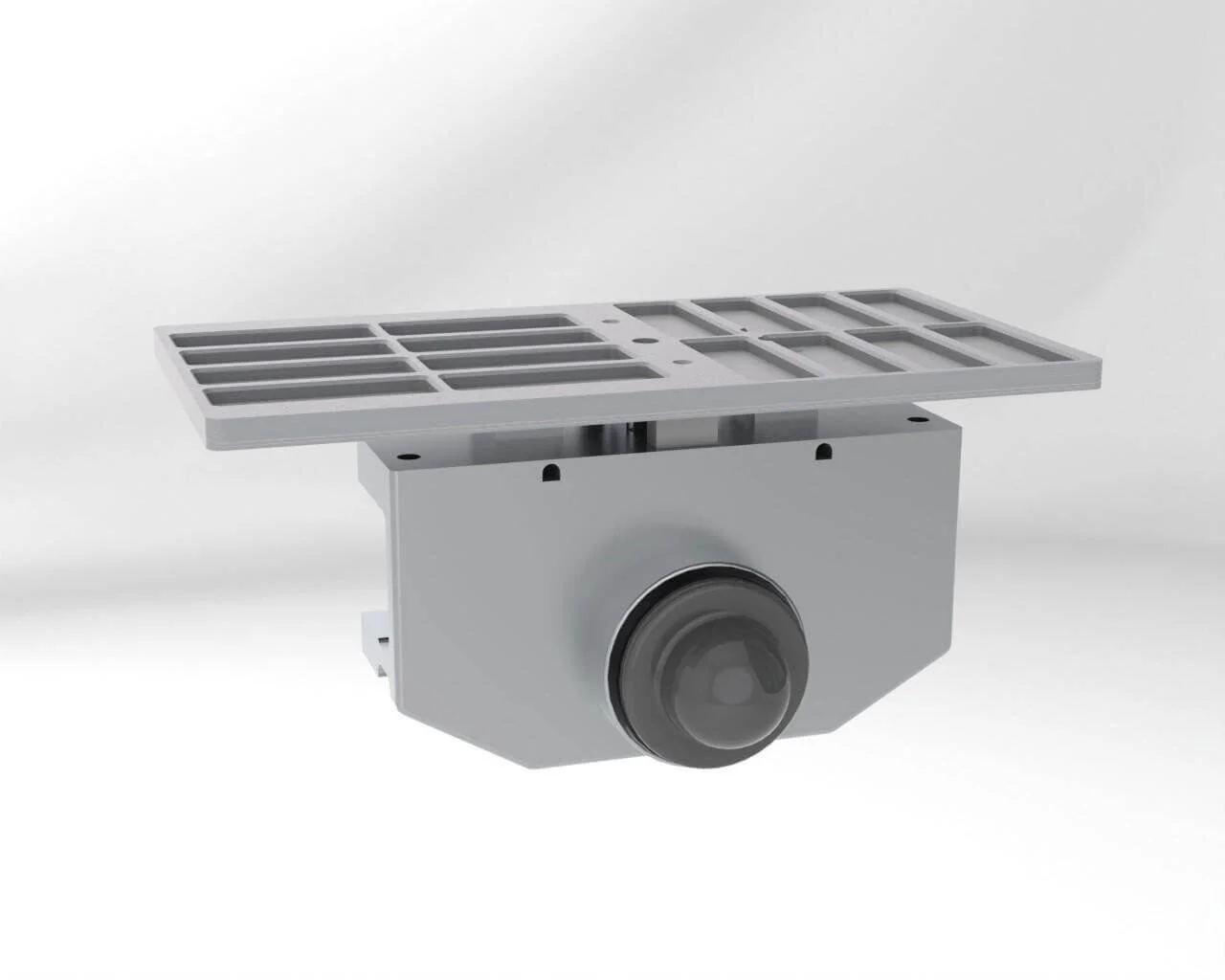

The industrial automated systems engineering wireless intelligent positioning carriage tray module

 Technical Specs

Each carriage is autonomous and has its own vacuum system, air generator, and I/O board to independently control any operation needed on the carriage.  This new generation of robotic transportation system has brought production efficiency to the next level.

  • Powered using low voltage

  • Rotational units and carriages controlled by brushless servomotors

  • Precision cycloid reducers (lifetime lubricated)

  • High precision linear motion ball bearings for quiet, smooth movement

  • 1 m/s maximum speed

  • Position accuracy within .015" (.4 mm)
