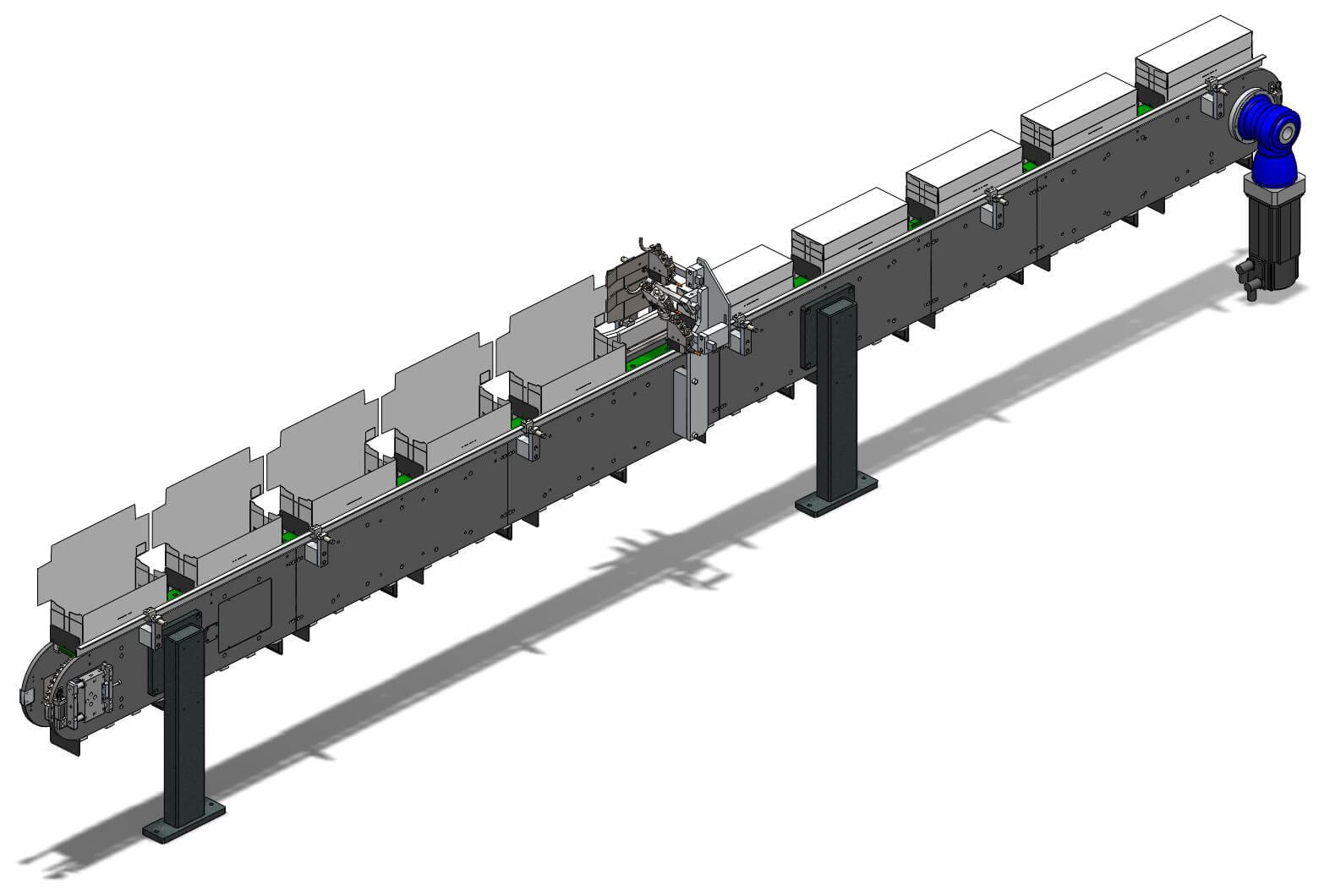

VC-300 Indexer
The VC-300 is a single-axis vertical collator designed to accurately position and convey cartons, trays and cases for various operation. Equipped with quick disconnect mechanisms, the cleats can easily be changed to accommodate a large variety of product and carton sizes and configurations.
Technical Specs
Anodized aluminum construction
Controlled by two asynchronous, closed-loop, brushless, servomotor-driven planetary gear reducers (lifetime lubricated)
High-precision UHMW rails for smooth and quiet operation
Sealed ball bearings
Product cleats fabricated from FDA-approved plastics (conveying pockets)
Maintenance-free, pre-stretched, non-lubricated chain
Reaches 1.9 G acceleration and speeds of up to 97 in/sec.
12 Gauge, stainless steel reducer and motor enclosure panels
High speed, 800 ppm
